jmap工具来生成堆转储,我们应该使用-dump参数,下面jhat工具可以使用的参数列表:
  C:UsersCycle>jhat-help
  Usage:jhat[-stack][-refs][-port][-baseline][-debug][-version][-h|-help]
  -J Pass directly to the runtime system.For
  example,-J-mx512m to use a maximum heap size of 512MB
  -stack false:Turn off tracking object allocation call stack.
  -refs false:Turn off tracking of references to objects
  -port:Set the port for the HTTP server.Defaults to 7000
  -exclude:Specify a file that lists data members that should
  be excluded from the reachableFrom query.
  -baseline:Specify a baseline object dump.Objects in
  both heap dumps with the same ID and same class will
  be marked as not being"new".
  -debug:Set debug level.
  0:No debug output
  1:Debug hprof file parsing
  2:Debug hprof file parsing,no server
  -version Report version number
  -h|-help Print this help and exit
  The file to read
  For a dump file that contains multiple heap dumps,
  you may specify which dump in the file
  by appending"#"to the file name,i.e."foo.hprof#3".
  All boolean options default to"true"
  我给jconsole应用程序创建了一个堆转储文件,并使用以下命令来运行进程id 3344:
  jmap-dump:format=b,file=heap.bin 3344
  现在,堆转储文件准备绪,运行下面命令并且会启动一个服务:
  jmap-dump:format=b,file=heap.bin 3344
  在控制台输出结果:
  C:UsersCycleDesktop>jhat heap.bin
  Reading from heap.bin...
  Dump file created Sun Nov 16 19:26:35 IST 2014
  Snapshot read,resolving...
  Resolving 641209 objects...
  Chasing references,expect 128 dots..................
  Eliminating duplicate references.....................
  Snapshot resolved.
  Started HTTP server on port 7000
  Server is ready.

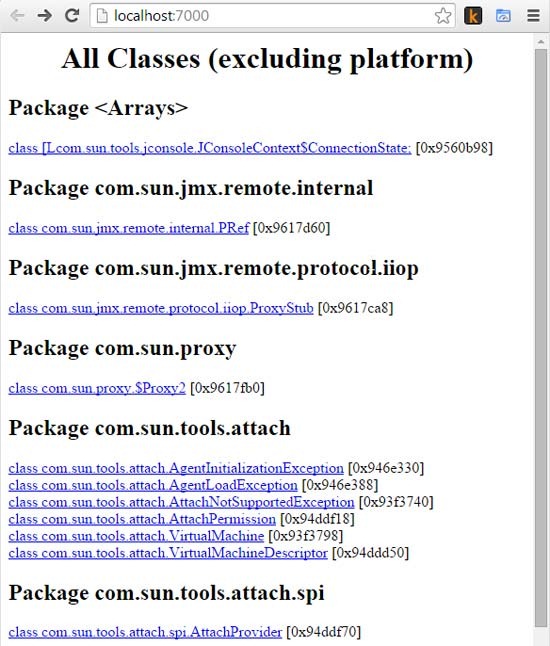

  在浏览器中输入:http://localhost:7000/后便会出来堆转储的详细情况:

  例如,还可以在http://localhost:7000/histo/查看堆内存柱状图。

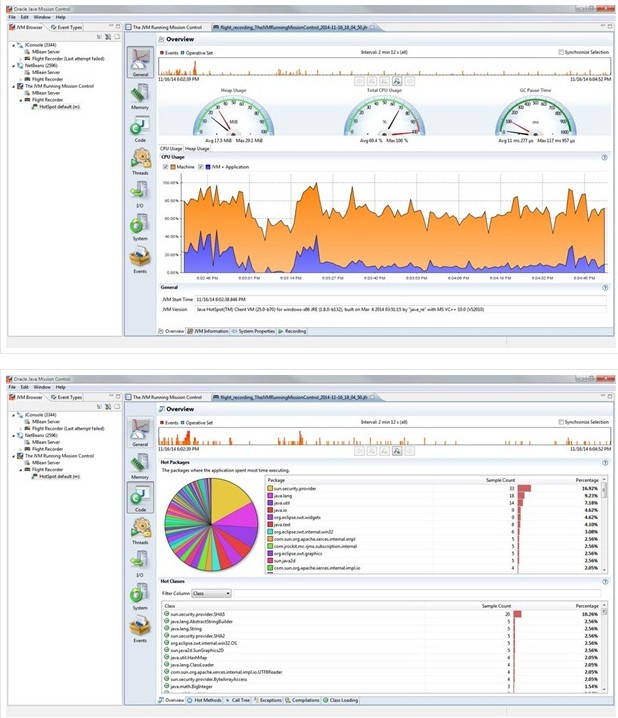

  5.Oracle Java Mission Control
  作为JVM融合战略的一部分,主要用来统一HotSpot、JRockit VMs。目前,JRockit Mission Control在标准版Java SE中已经可以使用。Java Mission Control(JMC)与Java Flight Recorder一起工作,适用于HotSpot JVM,用来记录核心数据和事件。它是一个调优工具,并且适用于Oracle JDK。一旦出现问题,这些数据可以用来分析。
  开发者可以使用jmc命令来创建JMC工具。
